Summary

Dispatchers can choose between two geofence types when creating and editing delivery locations: Radius or Polygon.

A Radius geofence, the default value for new or existing locations, allows you to create a circular boundary around a specific point (an address or specific latitude/longitude coordinates), essentially drawing a virtual circle. A radius geofence is useful when targeting a general area around a specific point.

A Polygon geofence allows you to define a more complex area by connecting multiple points to create a custom shape that may better fit the exact boundaries of a location, making it more precise than a simple radius geofence. A polygon geofence is ideal for targeting a specific building, a complex property boundary, or when you need to exclude certain areas within a larger region.

NOTE: Destination locations that were created prior to this release will retain their radius-based geofence unless and until a polygon geofence is added.

How to create and/or edit a destination geofence

See How

Read How

Creating/Editing a radius geofence

To draw a radius geofence around a specific location:

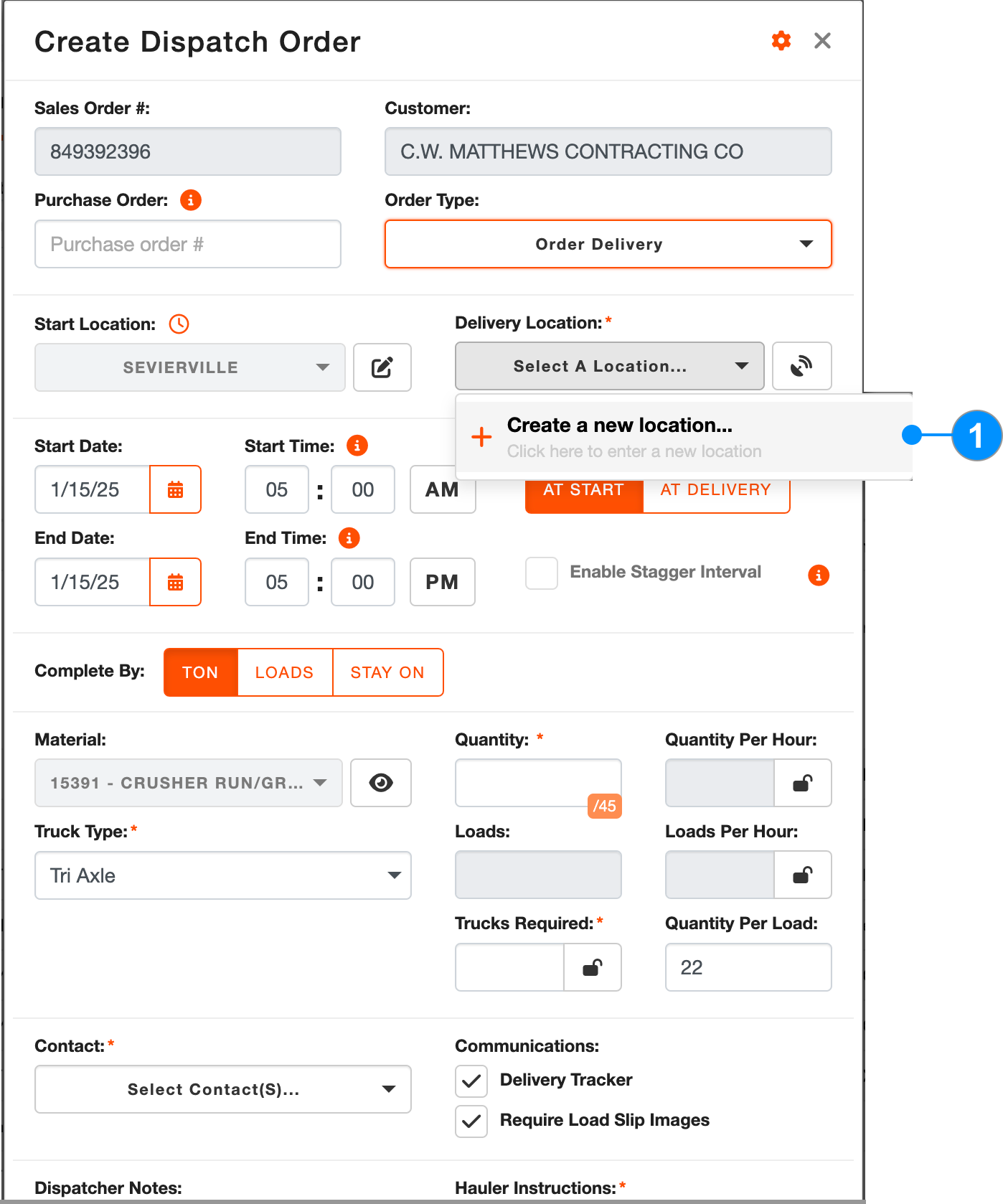

1. Click the Delivery Location drop-down list on the Create Dispatch Order window. Select an existing location to edit the geofence or select Create a new location. NOTE: Polygon geofences are not available for dynamic location jobs (e.g., paving jobs using a mobile beacon).




2. Enter the delivery location address or enter the longitude and latitude coordinates.

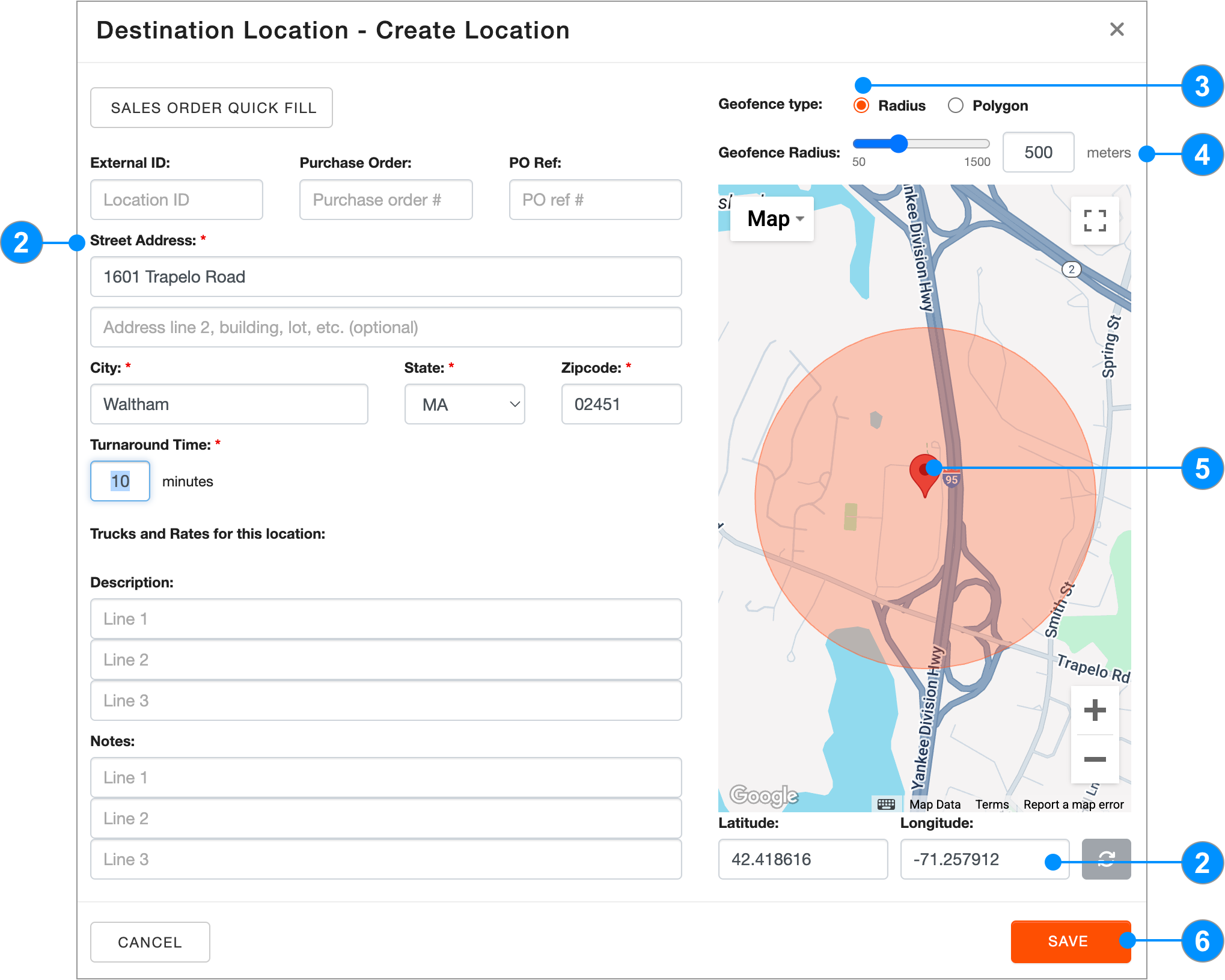

3. Select the Radius radio button above the map. A circle will be drawn around the entered address/longitude and latitude coordinates.
4. Click and slide the Geofence Radius slider to the left or right to decrease or increase the size of the circle. Or enter the size of the radius in meters.
5. Click and drag the map pin to move the geofence. NOTE: The pin will remain at the center of the circle as it is moved.
6. Click SAVE to save your radius geofence.



Go back to the top 🔝

Creating/Editing a polygon geofence

To draw a polygon geofence around a specific location:

1. Click the Delivery Location drop-down list on the Create Dispatch Order window. Select an existing location to edit the geofence or select Create a new location.




2. Enter the delivery location address or enter the longitude and latitude coordinates.

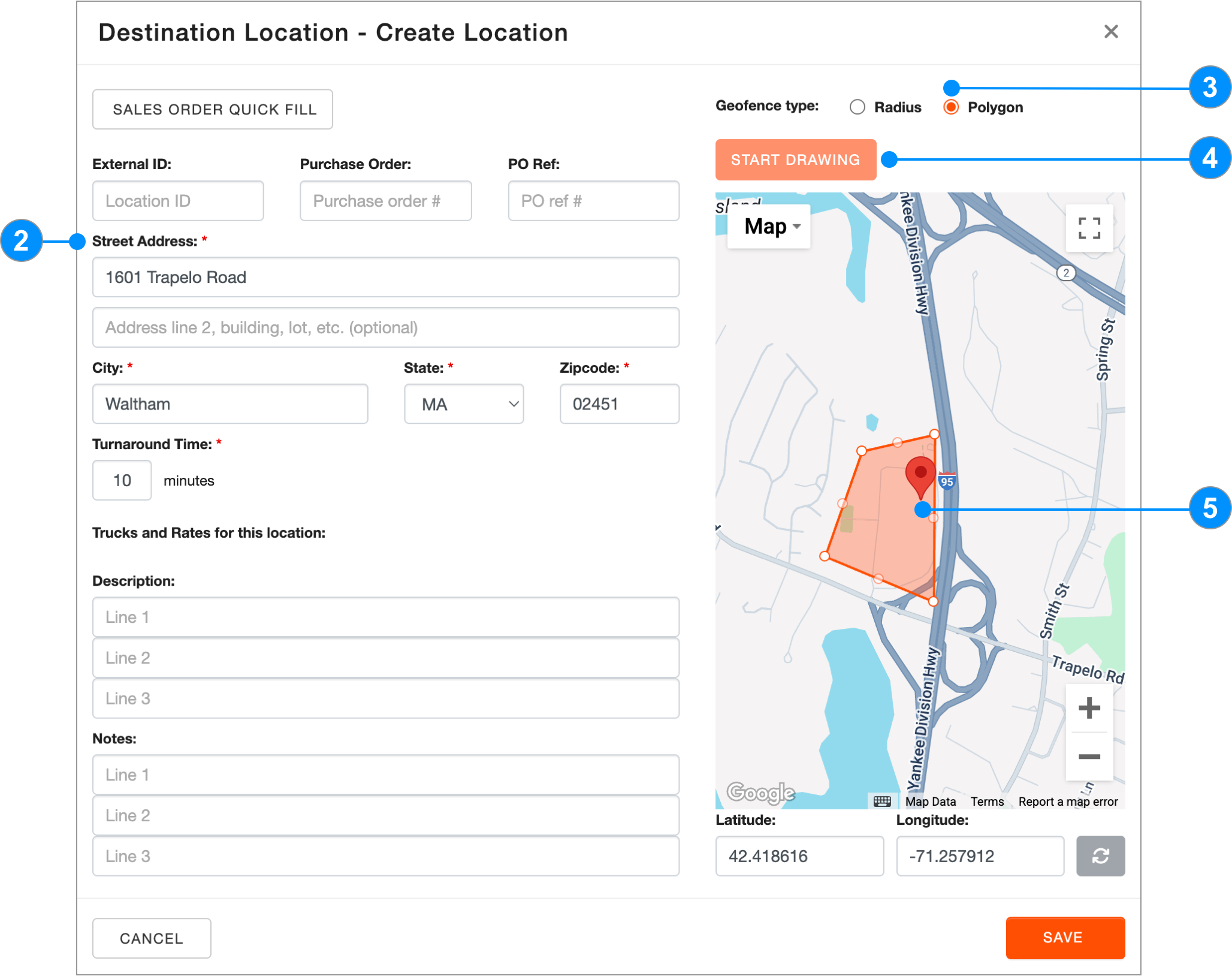

3. Select the Polygon radio button above the map.
4. The START DRAWING button will appear above the map. Click the button then click on the map to place the first point of your geofence on the map. NOTE: you will be able to move and/or delete any points at any step in the drawing process. Continue to click on the map where you would like to place each additional point of the geofence.
5. Add as many points as you need to create the shape of your geofence that’s required by the location. Click and drag any point to change the shape of your geofence. Click and drag anywhere inside the geofence to move the location of the drawn geofence around your location pin. You can also click and drag the pin to change the destination location coordinates within the drawn geofence.

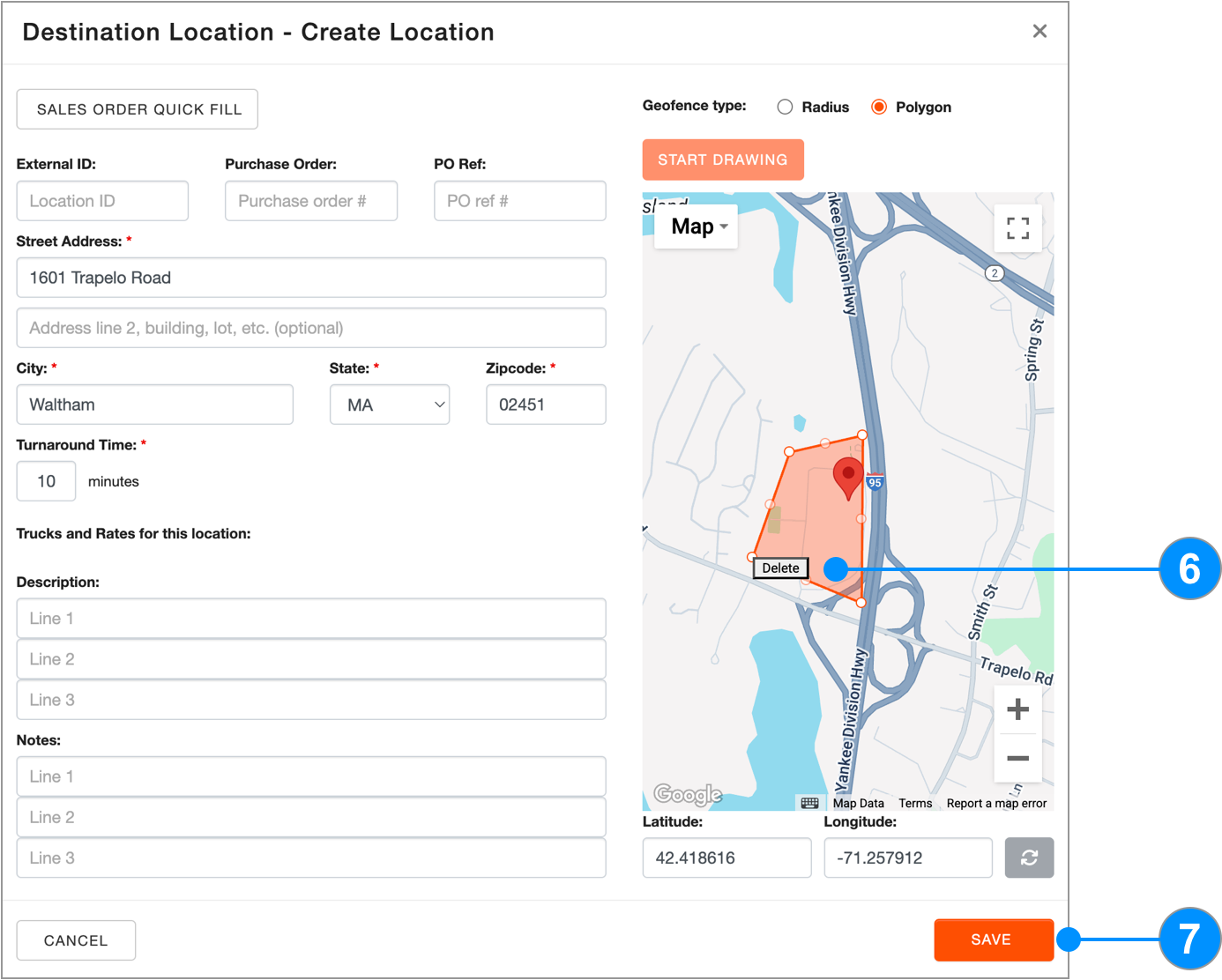

6. You can delete any points along the geofence boundary by right-clicking on a point and selecting Delete from the shortcut menu that appears.
7. Click SAVE to save your polygon geofence.



Go back to the top 🔝

Viewing Geofences When Tracking

Polygon geofences appear on the map when tracking punched-in haulers from the DISPATCH screen.

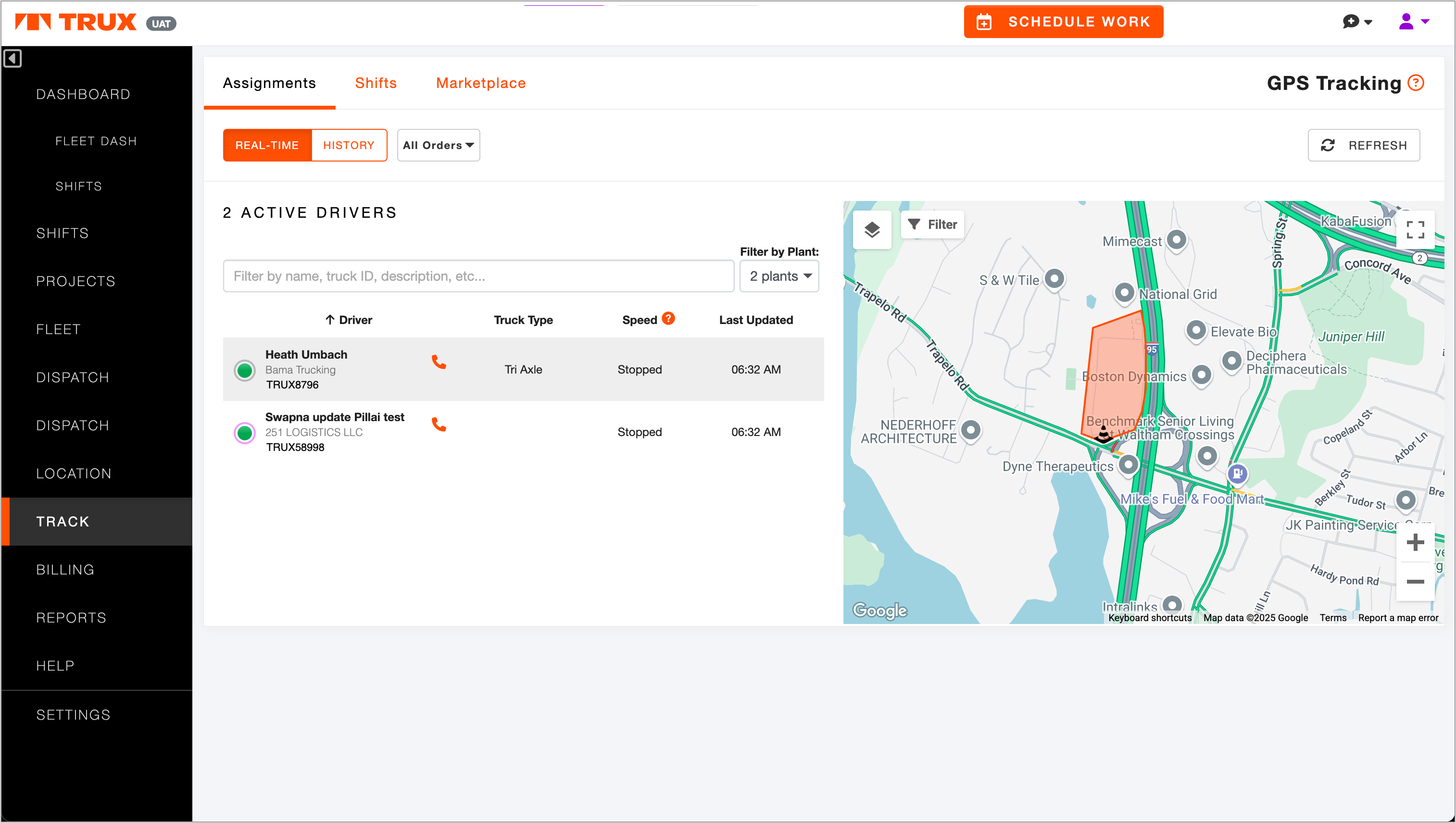

And from the TRACK screen.

Go back to the top 🔝

Viewing Geofences in the Delivery Tracker

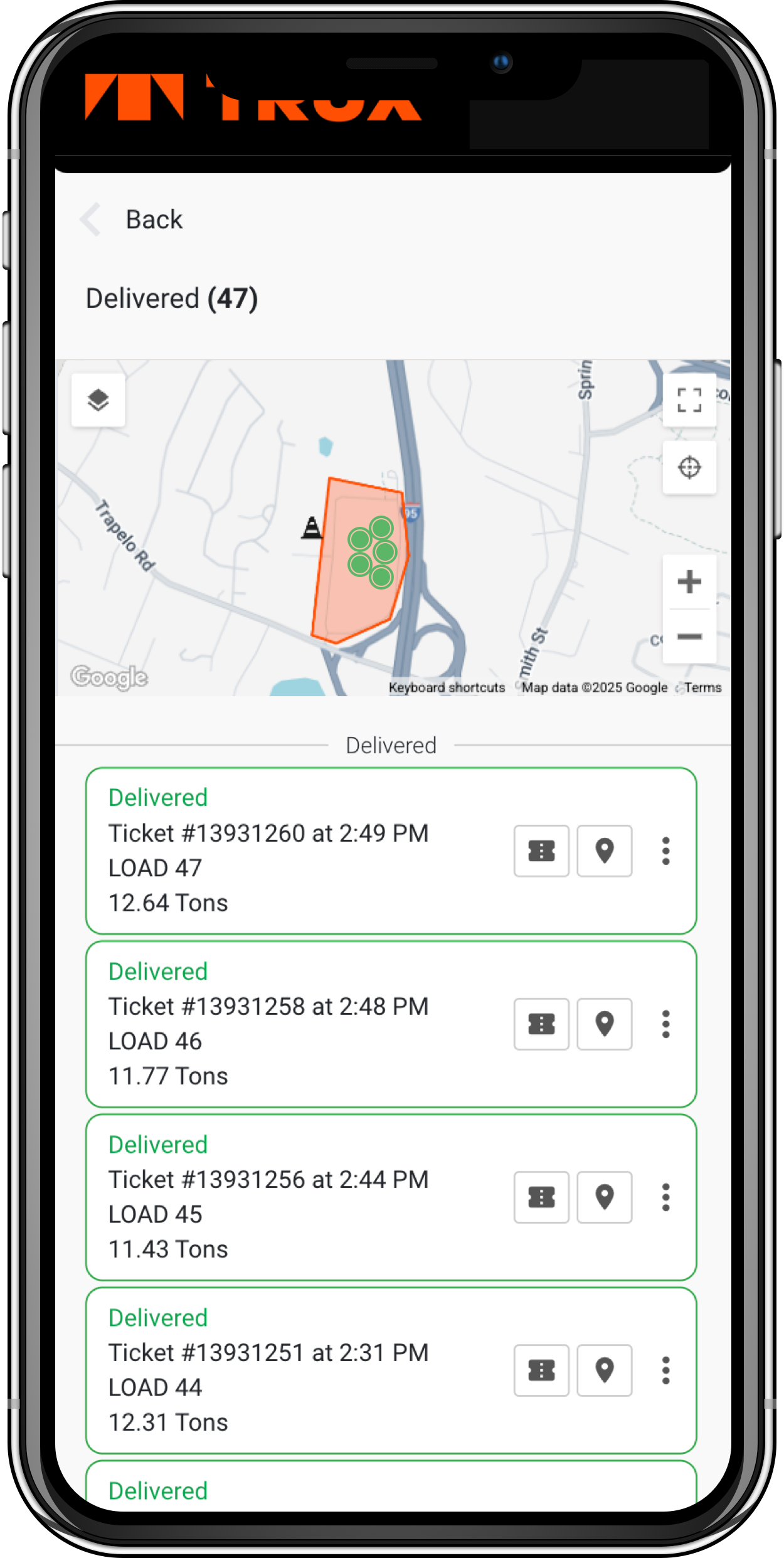

Destinations with polygonal geofences will also appear on the Delivered screen of the Delivery Tracker with completed loads displayed related to that geofence.

Go back to the top 🔝

Viewing a Polygon Geofence History

Dispatchers can view all of the changes made to an existing polygon geofence over time from the Edit Location screen.

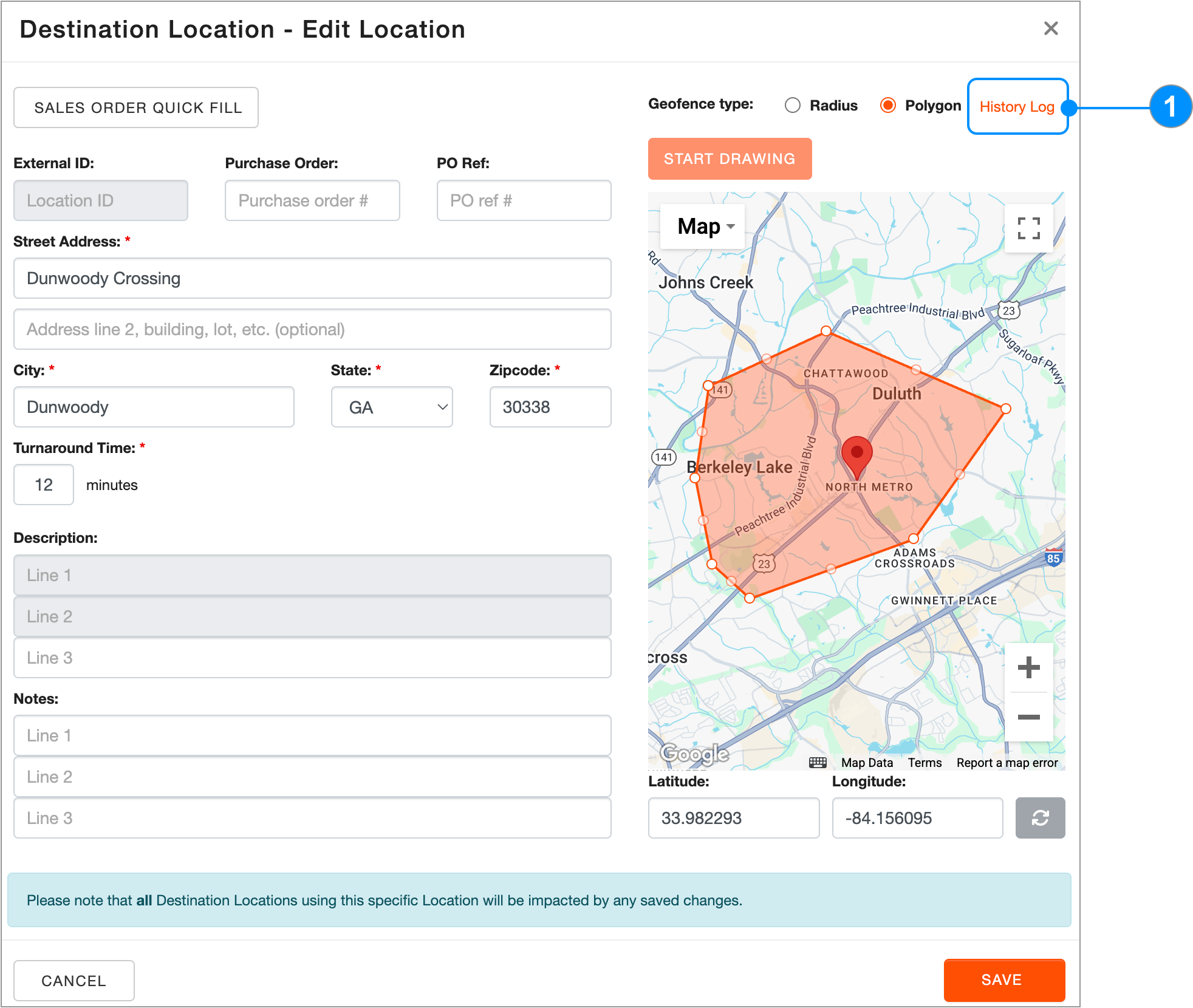

1. With the Polygon toggle button selected, click History Log.

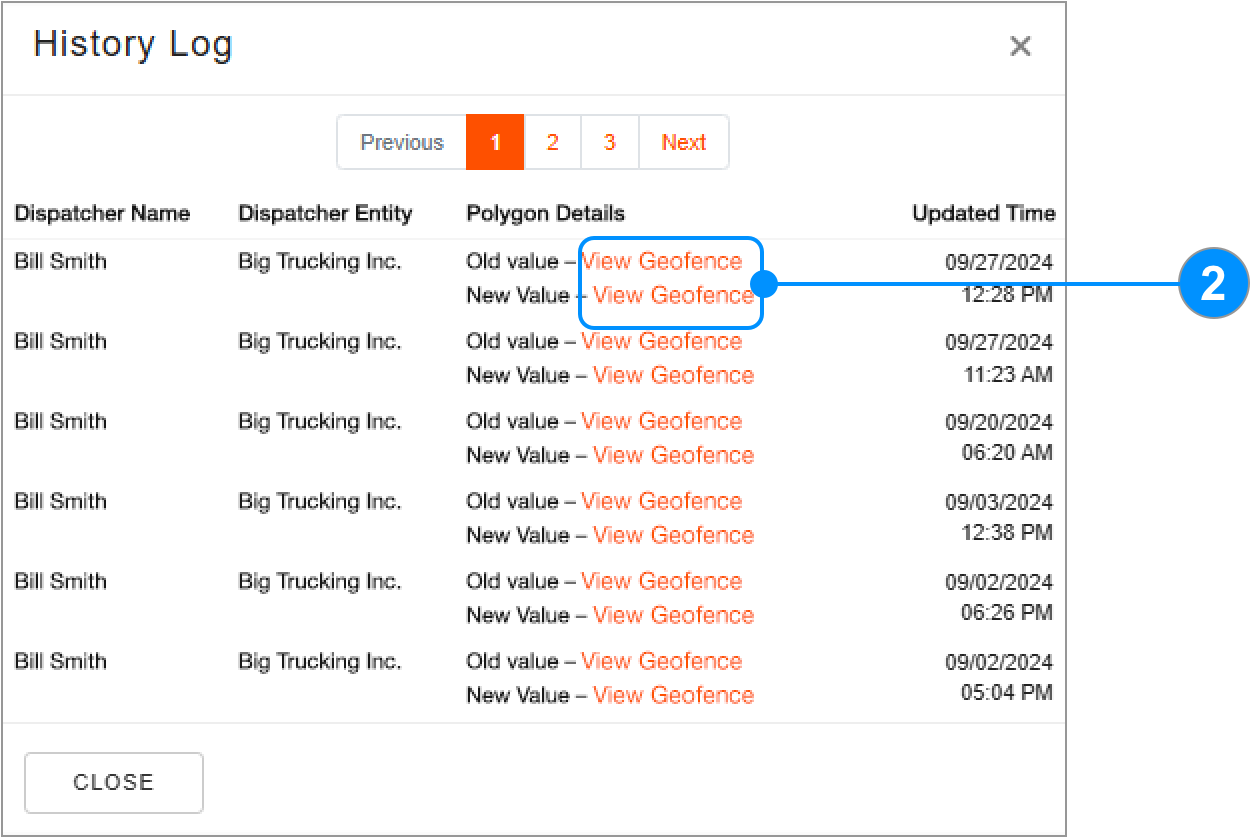

2. Click View Geofence to view current old and/or new geofence’s detailed longitude and latitude coordinates.

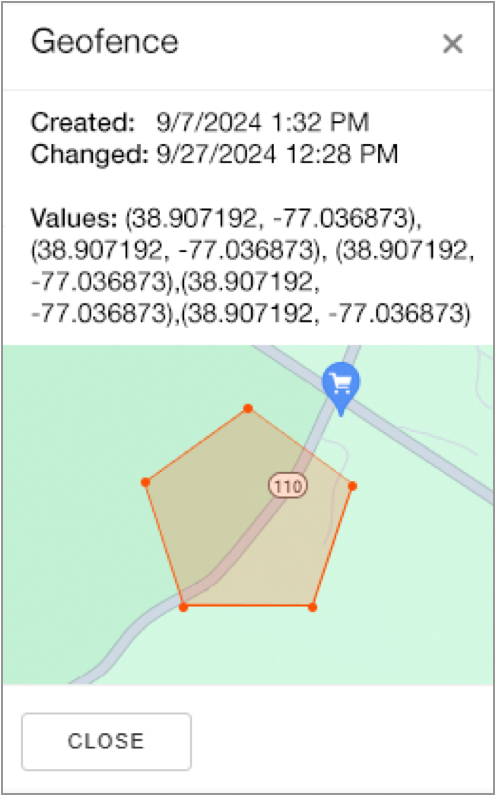

   The selected geofences detailed coordinates are displayed in the pop-up modal.
